fireplace designs for AutoCad


A collection of 160 fireplace design samples


An AutoCad “DWG” file which includes a collection of several fireplace design samples, together with some drawings about fireplace design details.

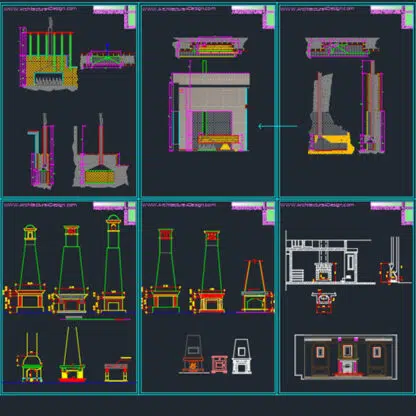

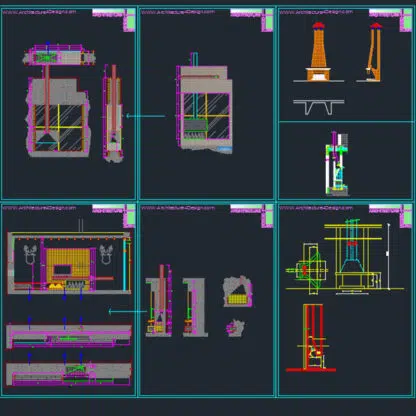

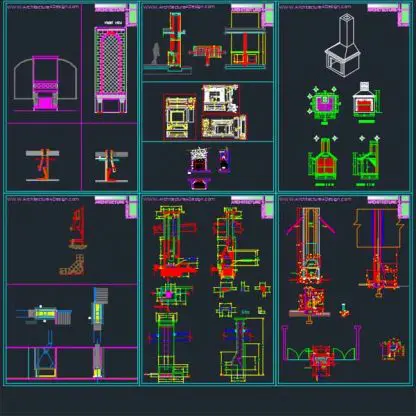

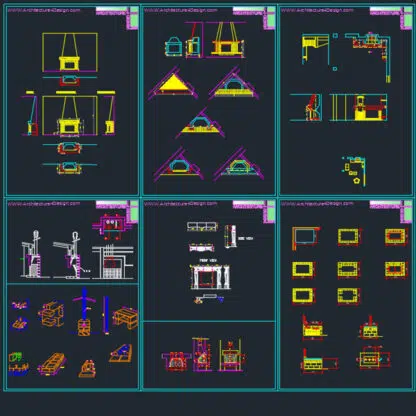

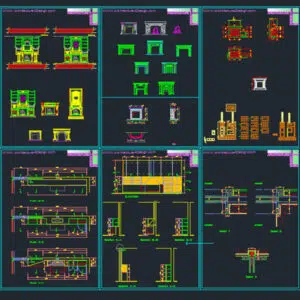

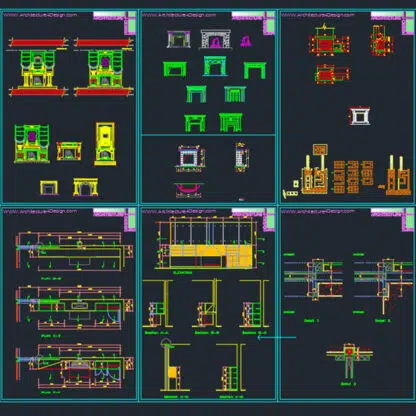

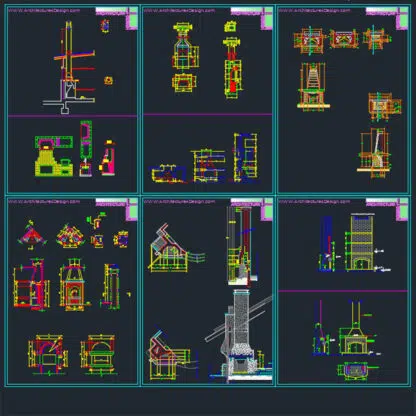

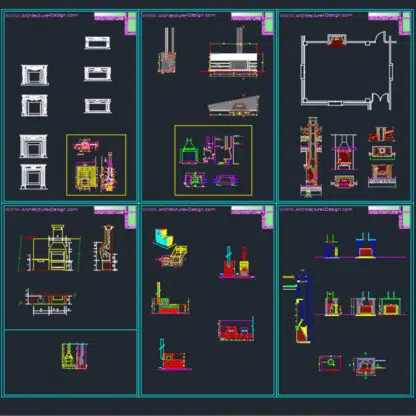

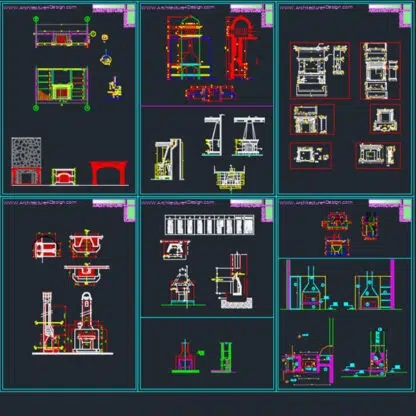

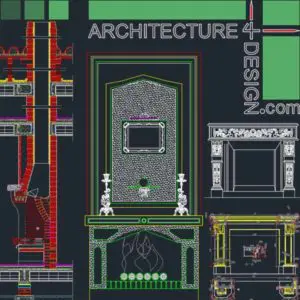

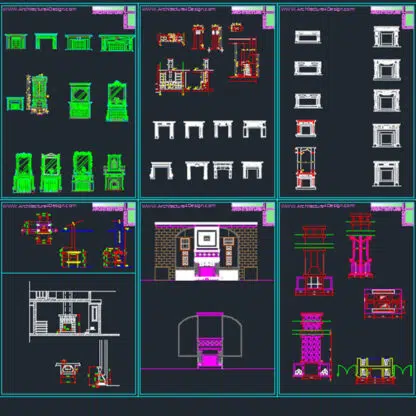

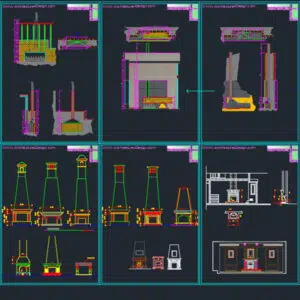

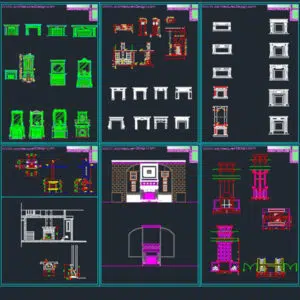

included in this collection are more than 160 fireplace designs with plans, elevations and sections drawings from some of the projects. For more information see the product pictures gallery and the product description below.



Contained inside this AutoCad “DWG” collection are architectural elevations or plans and sections of about 160 fireplace designs together some details.

For use with DWG viewers and editing with AutoCad version 2004 or later.

Some of the drawings presented in this collection are:

  • Various fireplace designs and dimensions
  • Modern fireplace designs
  • Classical fireplace designs
  • Fireplace design details

Details of fireplace design collection downloadable file:

Compressed File size: 11.8MB

File type: DWG

Total sheets: 60

Editable with AutoCad version 2004 or later.
